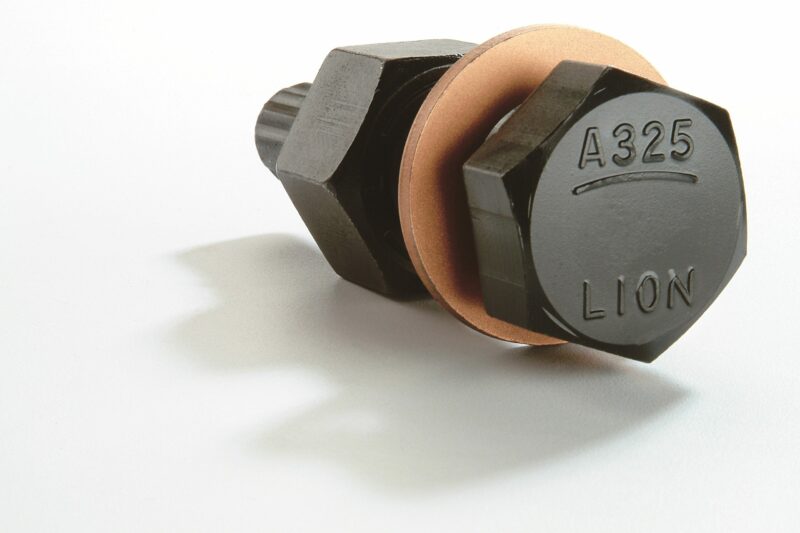

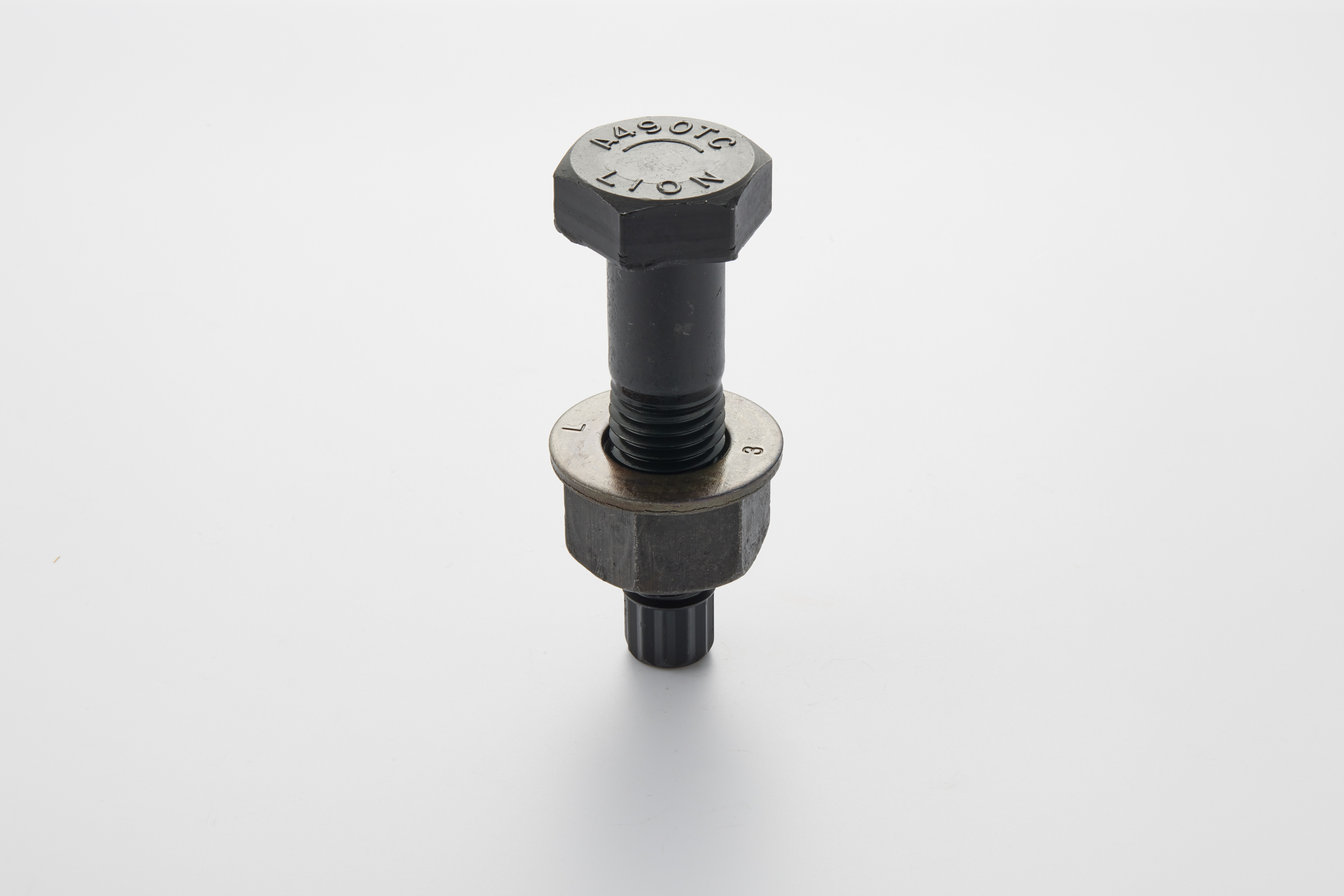

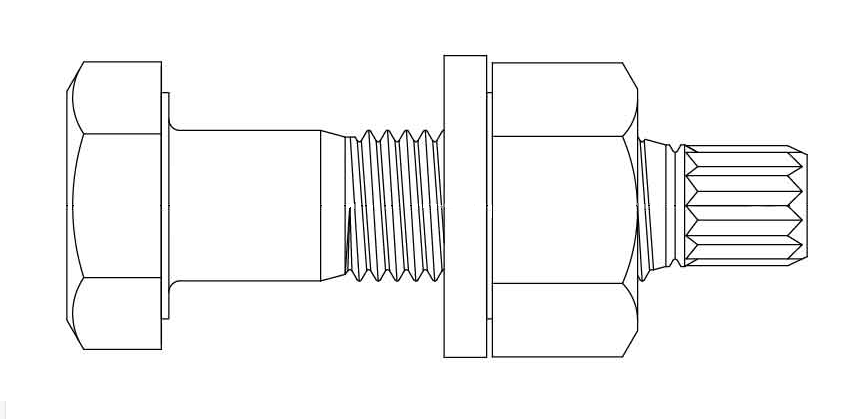

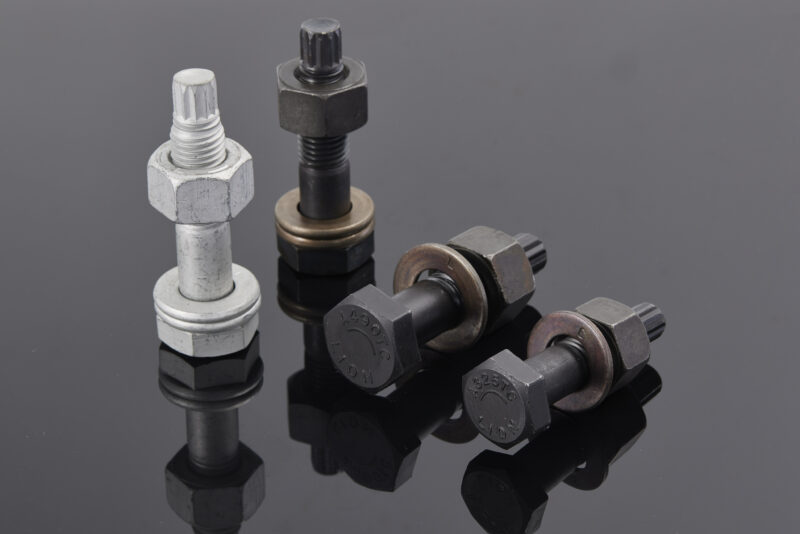

六角頭扭斷-A325/A490 T.C. bolt ( Hexagon head T.C. bolt )

鋼骨結構用高張力螺栓是建築中很常被使用的一種扣件，廣泛使用於在鋼骨結構中的結合。

春雨工廠由原料至成品，經過最嚴格的製程與品質管制，打造均於且穩定的破斷扭矩及扭矩係數，進而可得到安定、穩定的鎖緊軸力。主要應用於橋梁工程、住宅大樓、高樓大廈、工業廠房。

In the architecture industry, the high strength structural bolting assemblies are commonly used fasteners often used for the connection of steel structures.

From the raw materials to the finished products, Chun Yu factory always go through the most rigorous process and quality control to create uniform and stable breaking torque and torque coefficient, and obtains the stable mechanical properties. The assemblies are mainly used in bridge engineering, residential buildings, high-rise buildings, industrial plants.

描述

● ASTM A325 T.C. 螺栓適用ASTM F3125
● ASTM A490 T.C. 螺栓適用ASTM F3125

● ASTM A325 T.C. Bolt acc. to ASTM F3125
● ASTM A490 T.C. Bolt acc. to ASTM F3125

● The red words means full thread

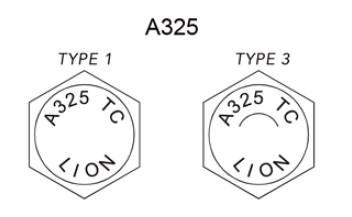

● ASTM A325螺栓型式 : TYPE 1
● 螺帽等級 : A563 DH、A194 2H、A563 C
● 墊圈型式 : F436 Type 1
● ASTM A325螺栓型式 : TYPE 3
● 螺帽等級 : A563 DH3、A563 C3
● 墊圈型式 : F436 Type 3

● ASTM A325 T.C.Bolt Type : TYPE 1
● Nut Grade : A563 DH、A194 2H、A563 C
● Washer Type : F436 Type 1
● ASTM A325 T.C.Bolt Type : TYPE 3
● Nut Grade : A563 DH3、A563 C3
● Washer Type : F436 Type 3

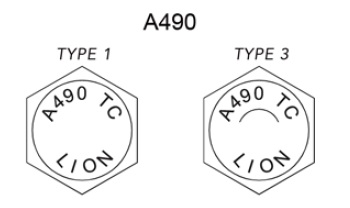

● ASTM A490螺栓型式 : TYPE 1
● 螺帽等級 : A563 DH、A194 2H
● 墊圈型式 : F436 Type 1
● ASTM A490螺栓型式 : TYPE 3
● 螺帽等級 : A563 DH3
● 墊圈型式 : F436 Type 3

● ASTM A490 T.C.Bolt Type : TYPE 1
● Nut Grade : A563 DH、A194 2H
● Washer Type : F436 Type 1
● ASTM A490 T.C.Bolt Type : TYPE 3
● Nut Grade : A563 DH3
● Washer Type : F436 Type 3

size

5/8x1-1/2"

3/4x1-1/2"

7/8x2"

1"x2-1/4"

1-1/8x2-1/2"

5/8x1-3/4"

3/4x1-3/4"

7/8x2-1/4"

1"x2-1/2"

1-1/8x2-3/4"

5/8x2

3/4x2"

7/8x2-1/2"

1"x2-3/4"

1-1/8x3"

5/8x2-1/4"

3/4x2-1/4"

7/8x2-3/4"

1"x3"

1-1/8x3-1/4"

5/8x2-1/2"

3/4x2-1/2"

7/8x3"

1"x3-1/4"

1-1/8x3-1/2"

5/8x2-3/4"

3/4x2-3/4

7/8x3-1/4"

1"x3-1/2"

1-1/8x3-3/4"

5/8x3"

3/4x3"

7/8x3-1/2"

1"x3-3/4"

1-1/8x4"

5/8x3-1/4"

3/4x3-1/4"

7/8x3-3/4"

1"x4"

1-1/8x4-1/4"

5/8x3-1/2"

3/4x3-1/2"

7/8x4"

1"x4-1/4"

1-1/8x4-1/2"

5/8x3-3/4"

3/4x3-3/4"

7/8x4-1/4"

1"x4-1/2"

1-1/8x4-3/4"

5/8x4"

3/4x4"

7/8x4-1/2"

1"x4-3/4"

1-1/8x5"

5/8x4-1/4"

3/4x4-1/4"

7/8x4-3/4"

1"x5"

1-1/8x5-1/4"

5/8x4-1/2"

3/4x4-1/2"

7/8x5"

1"x5-1/4"

1-1/8x5-1/2"

5/8x4-3/4"

3/4x4-3/4"

7/8x5-1/4"

1"x5-1/2"

1-1/8x5-3/4"

5/8x5"

3/4x5"

7/8x5-1/2"

1"x5-3/4"

1-1/8x6"

5/8x5-1/4"

3/4x5-1/4"

7/8x5-3/4"

1"x6"


5/8x5-1/2"

3/4x5-1/2"

7/8x6"



5/8x5-3/4"

3/4x5-3/4"


5/8x5-6"

3/4x6"
