Drywall Screws with Coarse thread

“粗牙”硬木螺絲使用於木板與石膏板間的固定結合，產品為單線螺紋，螺紋距較寬，故鎖入距離大阻力小，不會破壞木板本身的結構，利於石膏板牆與木板結合。

此系列適用於室內和天花板裝修、輕隔間工程。

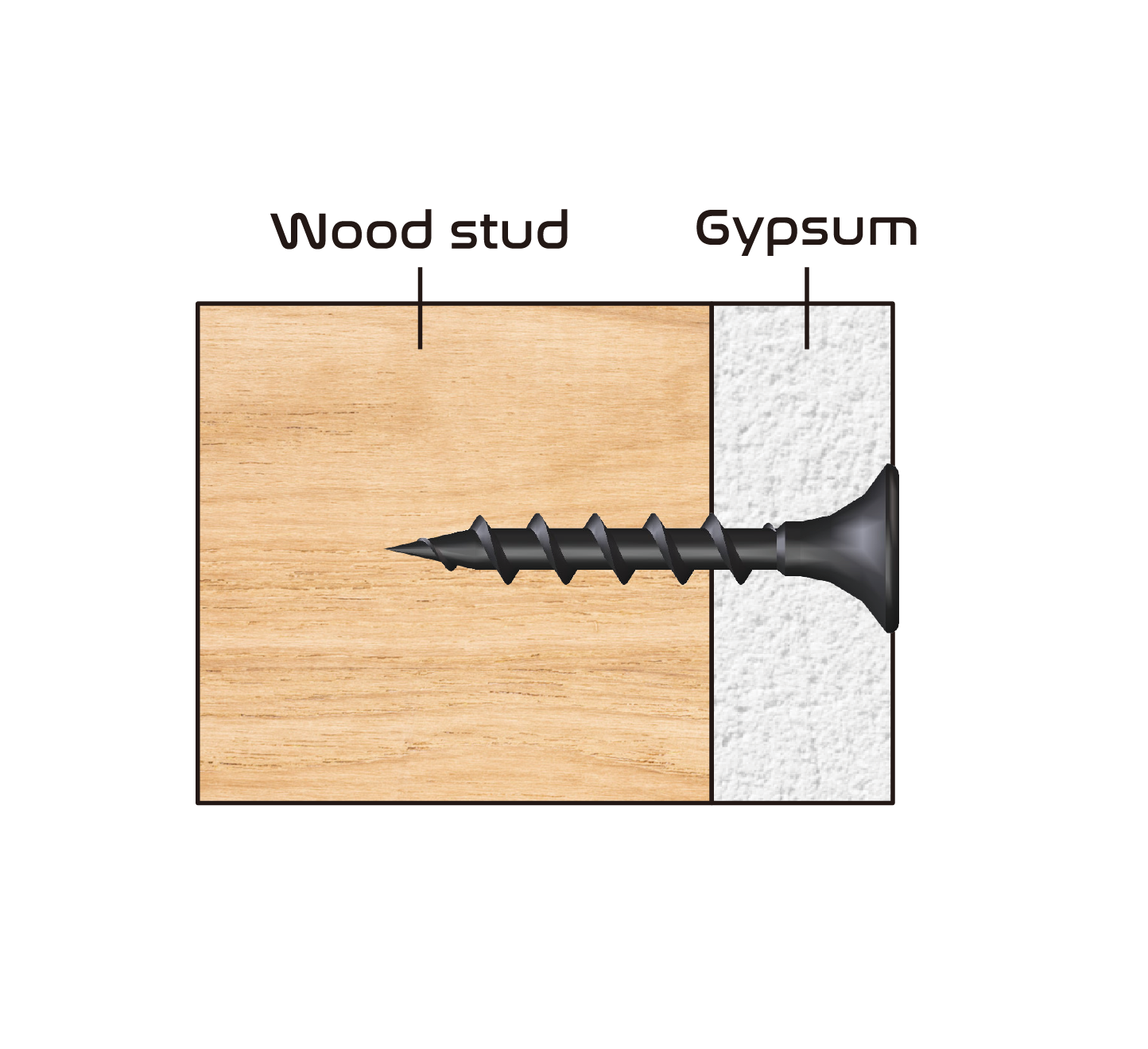

Coarse-threaded drywall screws are suitable for use with wood panels in conjunction with gypsum board.

This product features a single-thread design with a wider thread pitch, providing a greater locking distance,and minimizing resistance, thereby avoiding damage to the inherent structure of the wood panel.

This series is suitable for indoor and ceiling decoration, light partition projects, and more.

描述

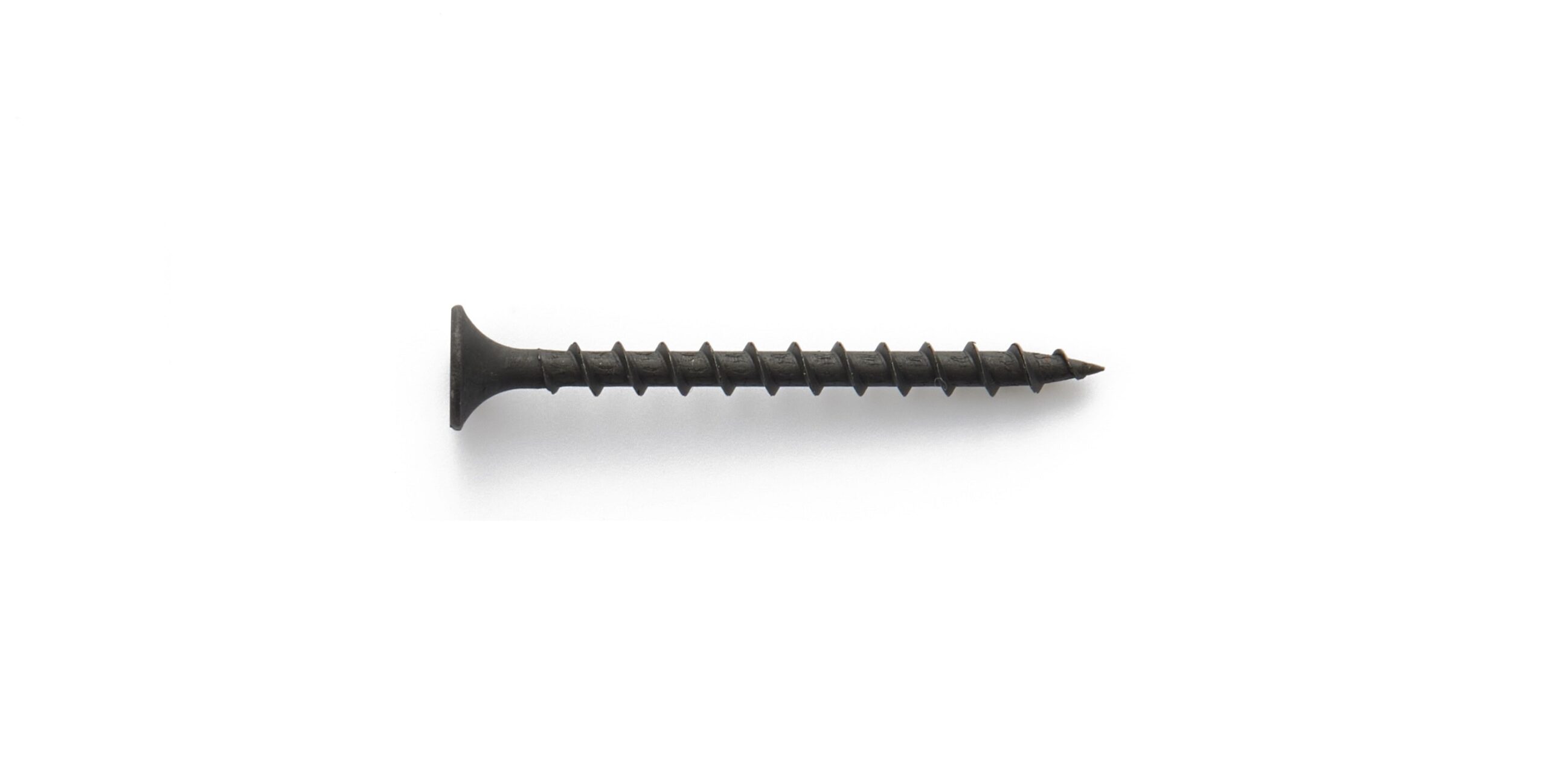

● Bugle head
● No.2 Phillips Drive
● Coarse / thread

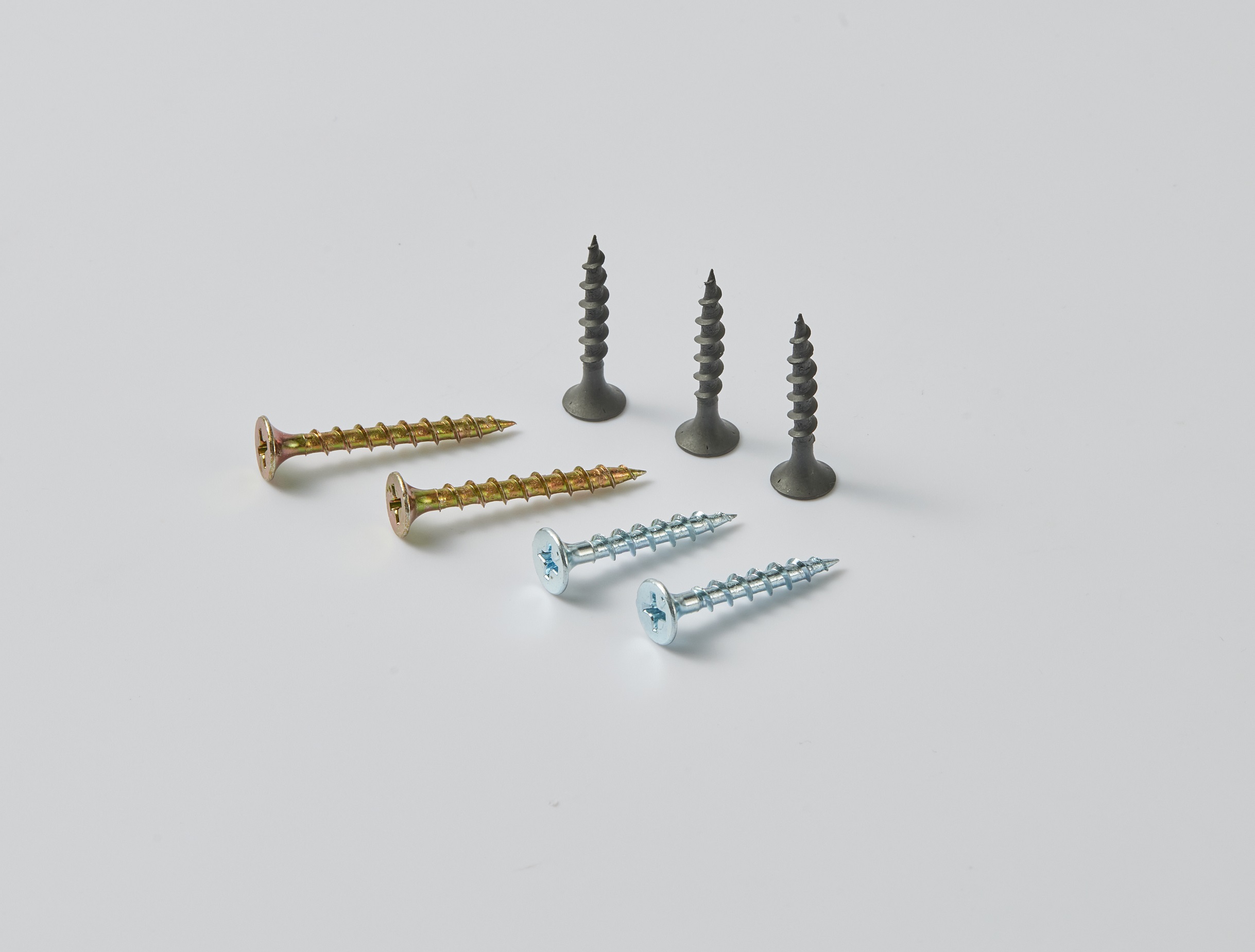

● Gray phosphated / Zinc plated
● EN 14566

size


　

　


3.5x25

3.9x25

4.2x32

4.8x32

#6x1"

#7x1"

#8x1"

#10x3"

3.5x30

3.9x30

4.2x38

4.8x38

#6x1-1/8"

#7x1-1/4"

#8x1-1/4"

#10x3-1/2"

3.5x32

3.9x32

4.2x50

4.8x50

#6x1-1/4"

#7x1-3/8"

#8x1-1/2"

#10x3-3/4"

3.5x35

3.9x35

4.2x55

4.8x63

#6x1-3/8"

#7x1-1/2"

#8x1-3/4"

#10x4"

3.5x38

3.9x38

4.2x60

4.8x75

#6x1-1/2"

#7x1-5/8"

#8x2"

#10x4-1/2"

3.5x40

3.9x40

4.2x63

4.8x80

#6x1-5/8"

#7x1-3/4"

#8x2-1/4"

#10x5"

3.5x41

3.9x41

4.2x65

4.8x90

#6x1-3/4"

#7x2"

#8x2-1/2"

#10x6"

3.5x45

3.9x45

4.2x70

4.8x100

#6x2"

#7x2-1/4"

#8x3"

3.5x50

3.9x50

4.2x75

4.8x110

#6x2-1/4"

#7x2-1/2"


3.5x55

3.9x55

4.2x80

4.8x120

4.8x130
